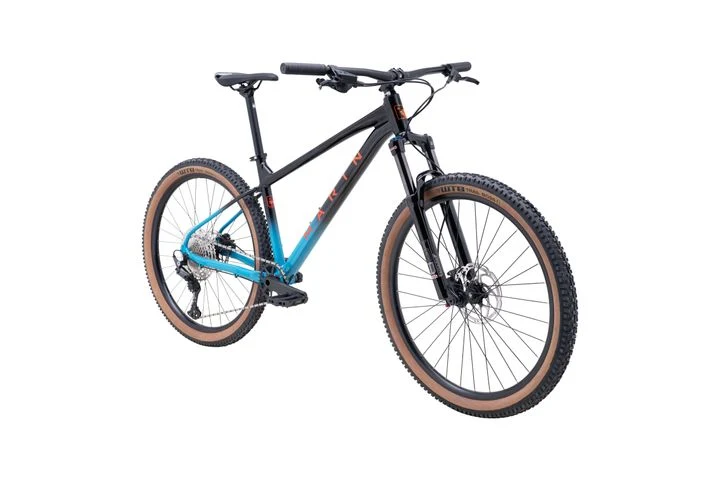

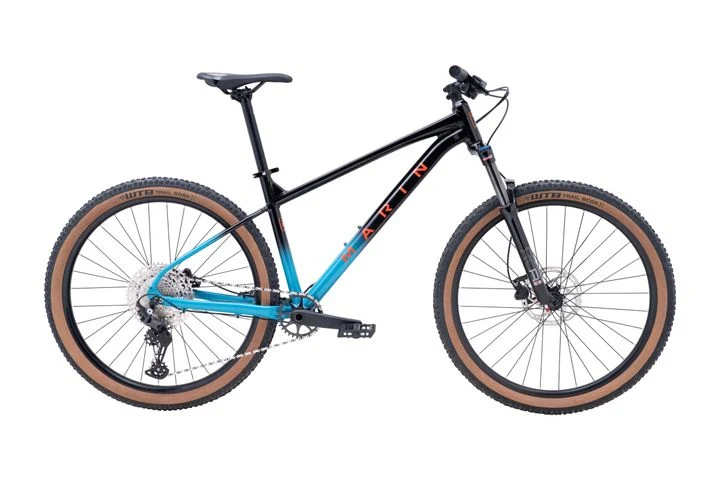

The best of the Bobcat family, the Marin Bobcat Trail 5 is our chance to really push what our bang-for-buck MTB can do. Fast, comfy and fun Series 2 aluminum frame? Check. 1X drivetrain? You got it. SR/Suntour XCR fork? You bet. Shimano CUES 11-speed shifting, Tektro hydraulic brakes and trendy tan wall WTB tires? Damn straight! And, of course, your choice of 27.5” or 29” wheels.

Specification

Frame

Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing

Front Suspension

SR Suntour XCR LOR-DS, Thru-Axle, 120mm Travel, Hydraulic Lockout, Damping Adjustment, 42mm (27.5") and 46mm (29") Offsets

Rim

Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible

Hub Rear

Forged Alloy, Disc, 32H

Hub Front

Forged Alloy, Disc, 32H

Spokes

14g Black Stainless Steel

Tires

MTB, 27.5/29x2.25"

Shift Lever

Shimano Deore SLM5100, 11-Speed

Crankset

Alloy Crank, Steel Narrow-Wide Chainring, 32T

Bottom Bracket

Sealed Cartridge Bearings, Square Taper

Chain

KMC X11

Cassette

Shimano CSM5100, 11-Speed, 11-51T

Brakes Front

Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

Brakes Rear

Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

Brake Levers

Shimano BL-MT201

Handlebar

Marin 31.8 Riser, 12mm Rise, 780mm Width

Stem

Marin Alloy, 31.8mm Clamp, 45mm

Grips

Marin MTB, Closed End

Headset

FSA No.10-P

Seatpost

Marin Alloy, 30.9

Saddle

Marin MTB

Pedals

Nylon Platform
